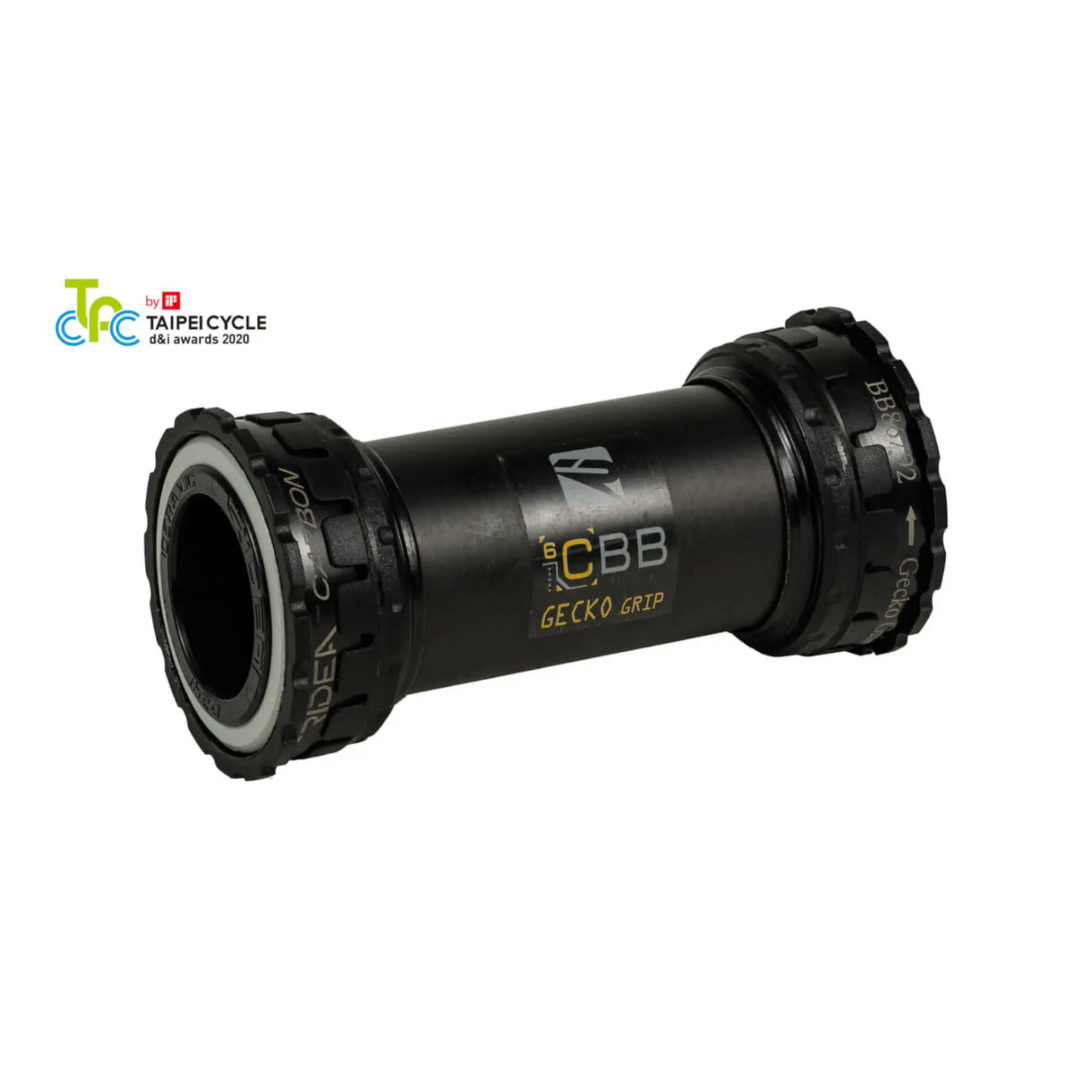

RIDEA 6CBB Gecko Grip is the ultimate solution for creaky Press-Fit systems. An easy to install bottom bracket made with the last technology in Forged Carbon and the exclusive Gecko Grip technology to assure you smooth and silent rides.
All 6CBB bottom brackets use bearings with steel races and ceramic balls. As an option, higher quality bearings with stainless steel races and 4 years of warranty are also available.
While some models are exclusive for 24 mm spindles (RIDEA, Shimano and others), most 6CBB Gecko Grip are compatible with a variety of spindle diameters thanks to the use of spindle sleeves to adapt to 24, 25 (Campagnolo), 29 (RIDEA and SRAM DUB) and 30 mm spindles.
P/N | Frame compatibility | BB shell width | BB shell diameter | Spindle Ø compatibility | Weight |
CN B86 24 |
BB86 BB92 |
86.5 mm 91.5 mm |
41 mm | 24 mm | 60 g |
CN 386 30* |
BB386EVO BB392EVO |
86.5 mm 91.5 mm |
46 mm | 24/25/29/30 mm | 73 g |
CN F30 30 | PF30 |
68 mm 73 mm |
46 mm | 24/25/29/30 mm | 88 g |
CN F3A 30 | PF30A | 73 mm | 46 mm | 24/25/29/30 mm | 84 g |
CN B30 30 | BB30 |
68 mm 73 mm |
42 mm | 24/25/29/30 mm | 79 g |
CN B30 24 | BB30 |
68 mm 73 mm |
42 mm | 24 mm | 80 g |
CN B3A 24 | BB30A | 73 mm | 42 mm | 24 mm | 76 g |
CN BBR 30 | BBright | 79 mm | 46 mm | 24/25/29/30 mm | 80 g |
*CN 386 30 is also compatible with PF30 and OSBB frames by cutting the length of the center sleeve.
