RIDEA - 6CBB Gecko Grip 壁虎環 鍛造碳纖維 陶瓷BB 系列

RIDEA - 6CBB Gecko Grip 壁虎環 鍛造碳纖維 陶瓷BB 系列

HK$818.00
HK$818.00
特價 售罄
結帳時計算運費。
Spec. 規格
6CBB Gecko Grip BB86 BB series
壁虎爪 鍛造碳纖維 陶瓷BB 系列

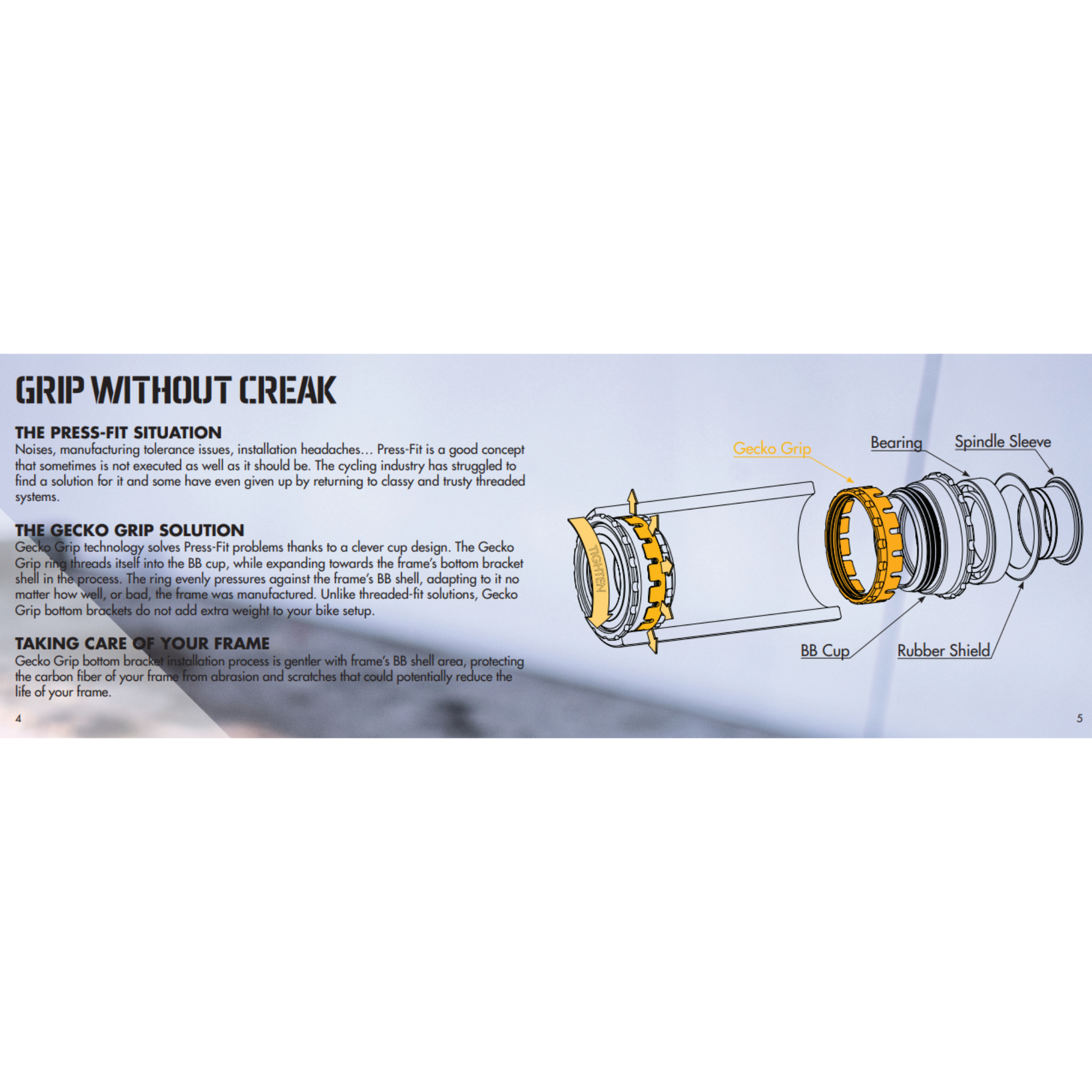

- 專利「壁虎爪」設計，將自身旋入 BB 外殼中，向車架的五通擴展，均勻地爪壓固定，無論車架狀況及公差，都能輕易適應。

- 安裝過程更溫和，車架的 BB 外殼區域可保護您的車架五通免受磨損和刮痕，大幅降低車架五通的耗損。

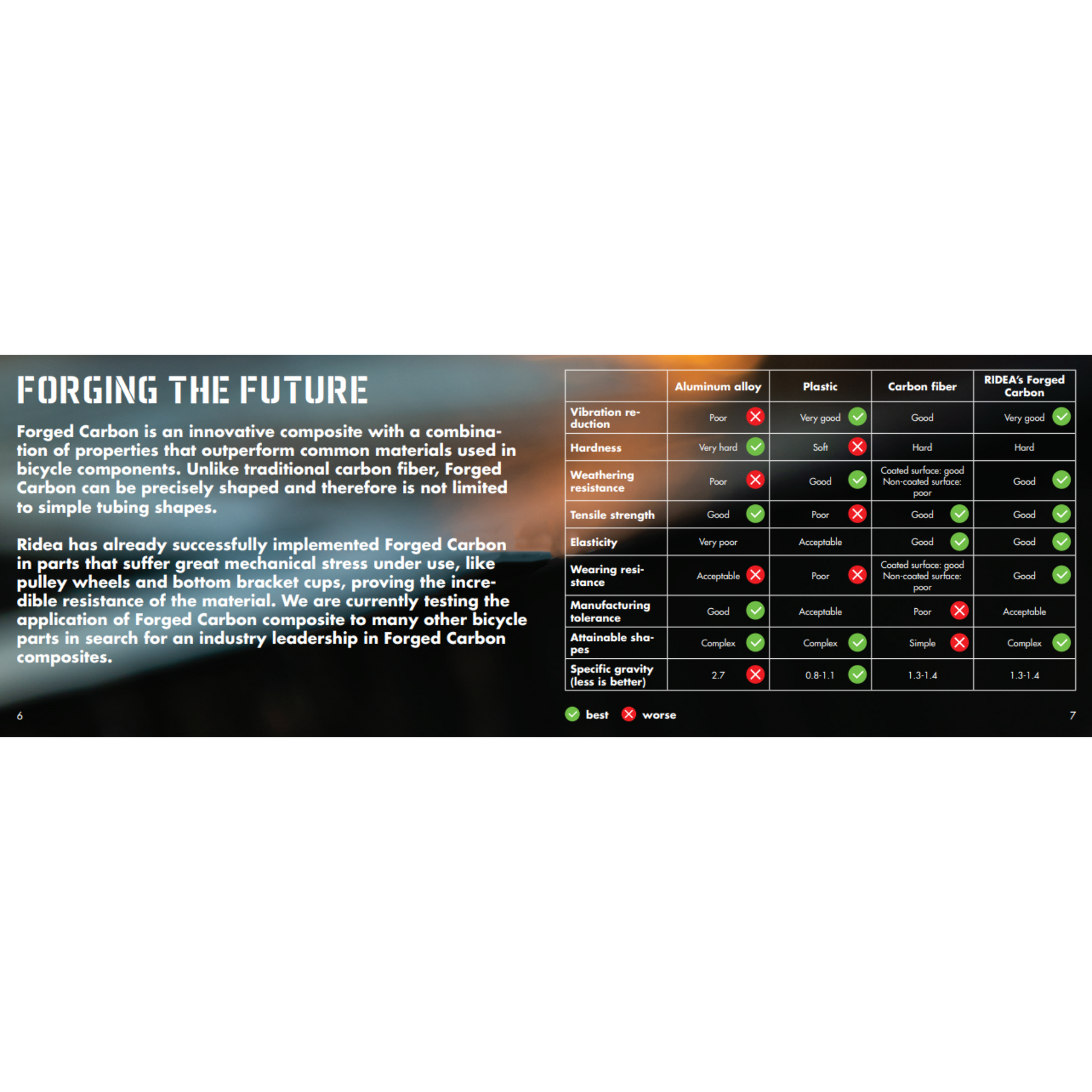

- 外殼由鍛造碳纖維製造，強度及吸震效果突出，同時為業界最輕量的 BB。

- 專利「抗水環」結構，比其他頂級 BB 提供更佳的抗水防塵能力。

- 頂級 RIDEA RT1 陶瓷球軸承 (RT1 Ball Bearing)，給你最佳的真圓及順滑度體驗。

- 軸承於出廠前已進行潤滑處理(refined-lube)，拆封後直接安裝即可享受最速體驗。


「不論是新車 或是 五通有損傷，都推薦使用的 "五通救星"」

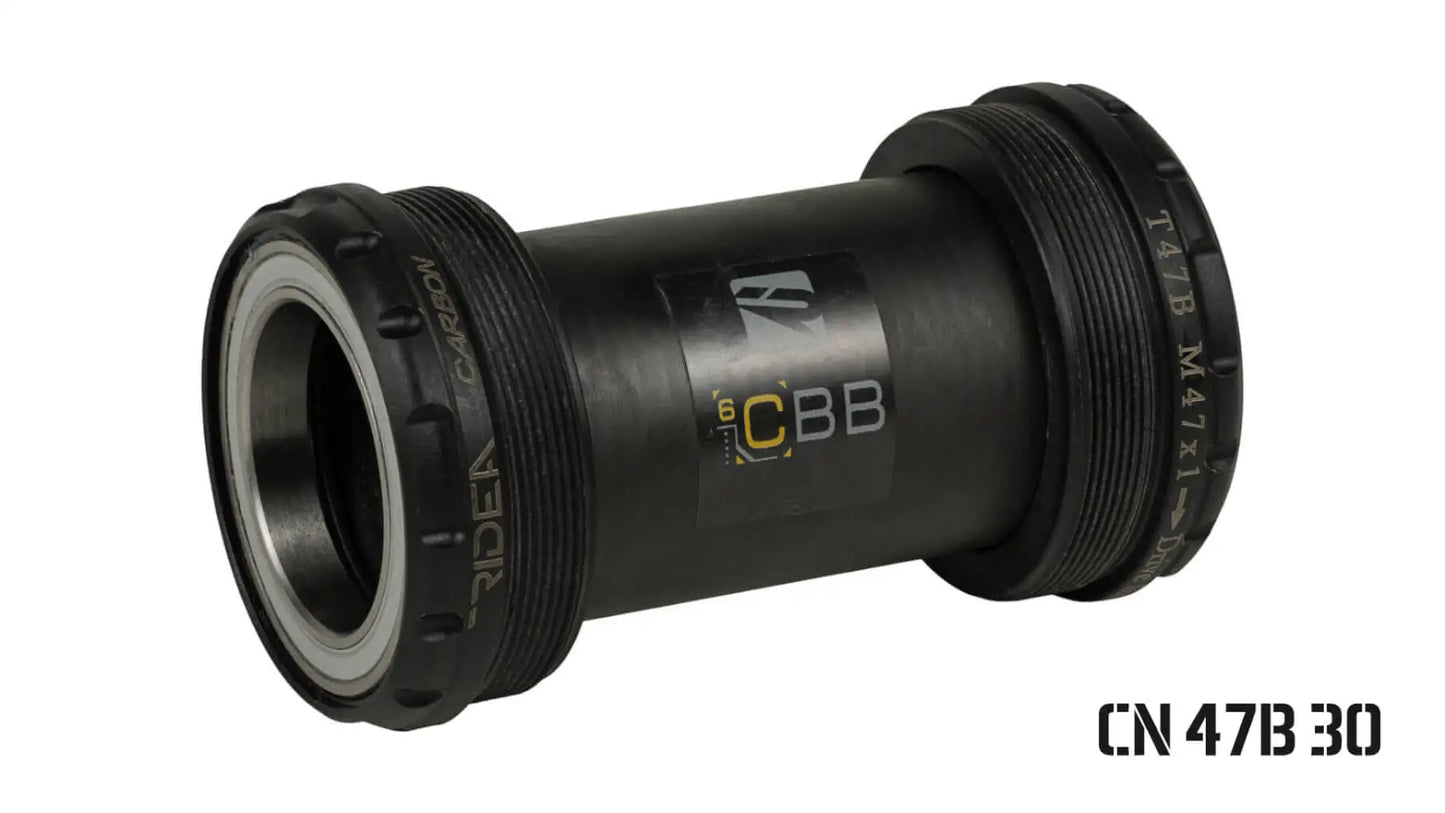

RIDEA 6CBB Gecko Grip is the ultimate solution for creaky Press-Fit systems. An easy to install bottom bracket made with the last technology in Forged Carbon and the exclusive Gecko Grip technology to assure you smooth and silent rides.

All 6CBB bottom brackets use bearings with steel races and ceramic balls. As an option, higher quality bearings with stainless steel races and 4 years of warranty are also available.

While some models are exclusive for 24 mm spindles (RIDEA, Shimano and others), most 6CBB Gecko Grip are compatible with a variety of spindle diameters thanks to the use of spindle sleeves to adapt to 24, 25 (Campagnolo), 29 (RIDEA and SRAM DUB) and 30 mm spindles.





P/N Frame compatibility BB shell width BB shell diameter Spindle Ø compatibility Weight

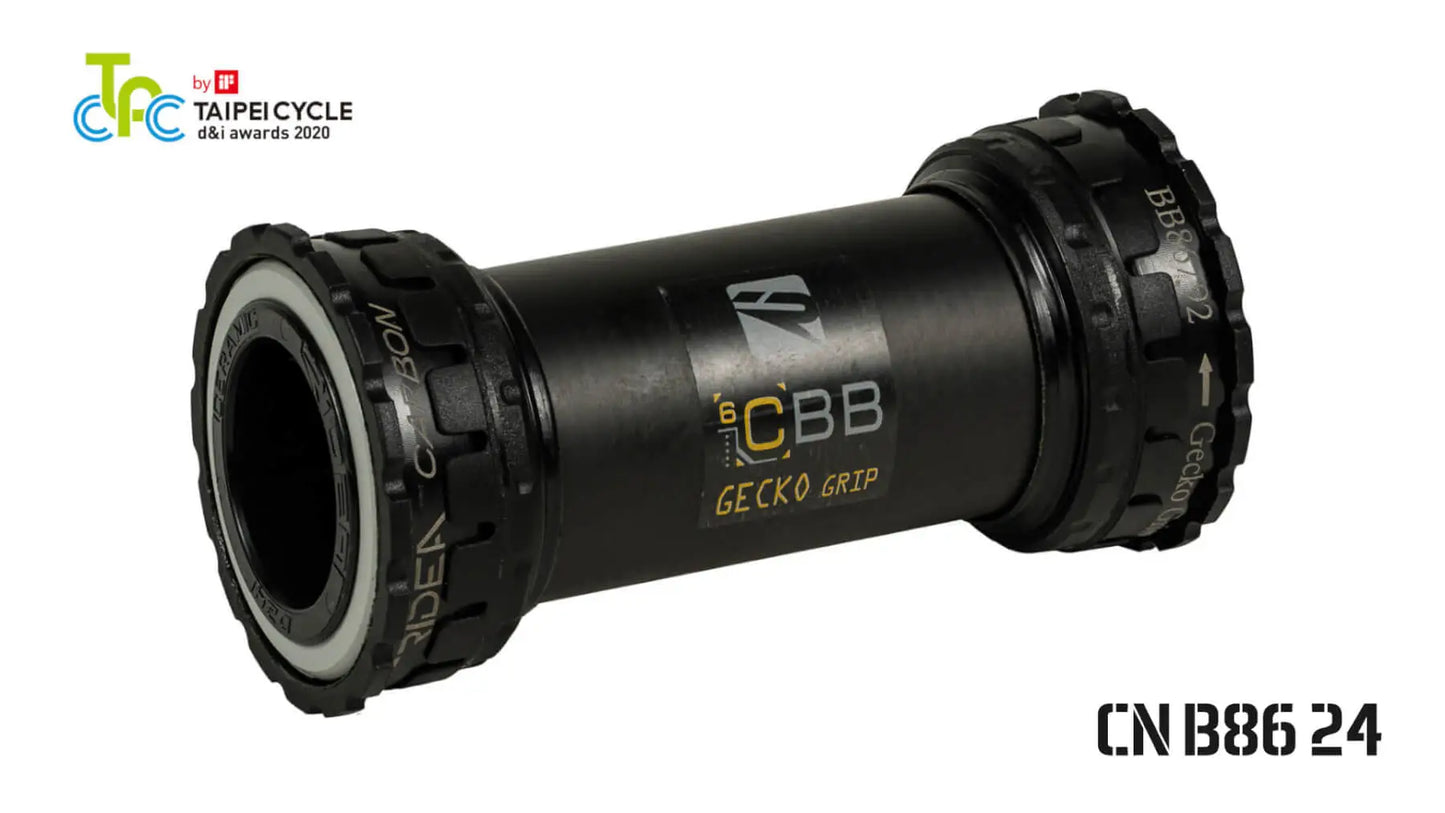

CN B86 24 BB86
BB92 		86.5 mm
91.5 mm 		41 mm 24 mm 60 g

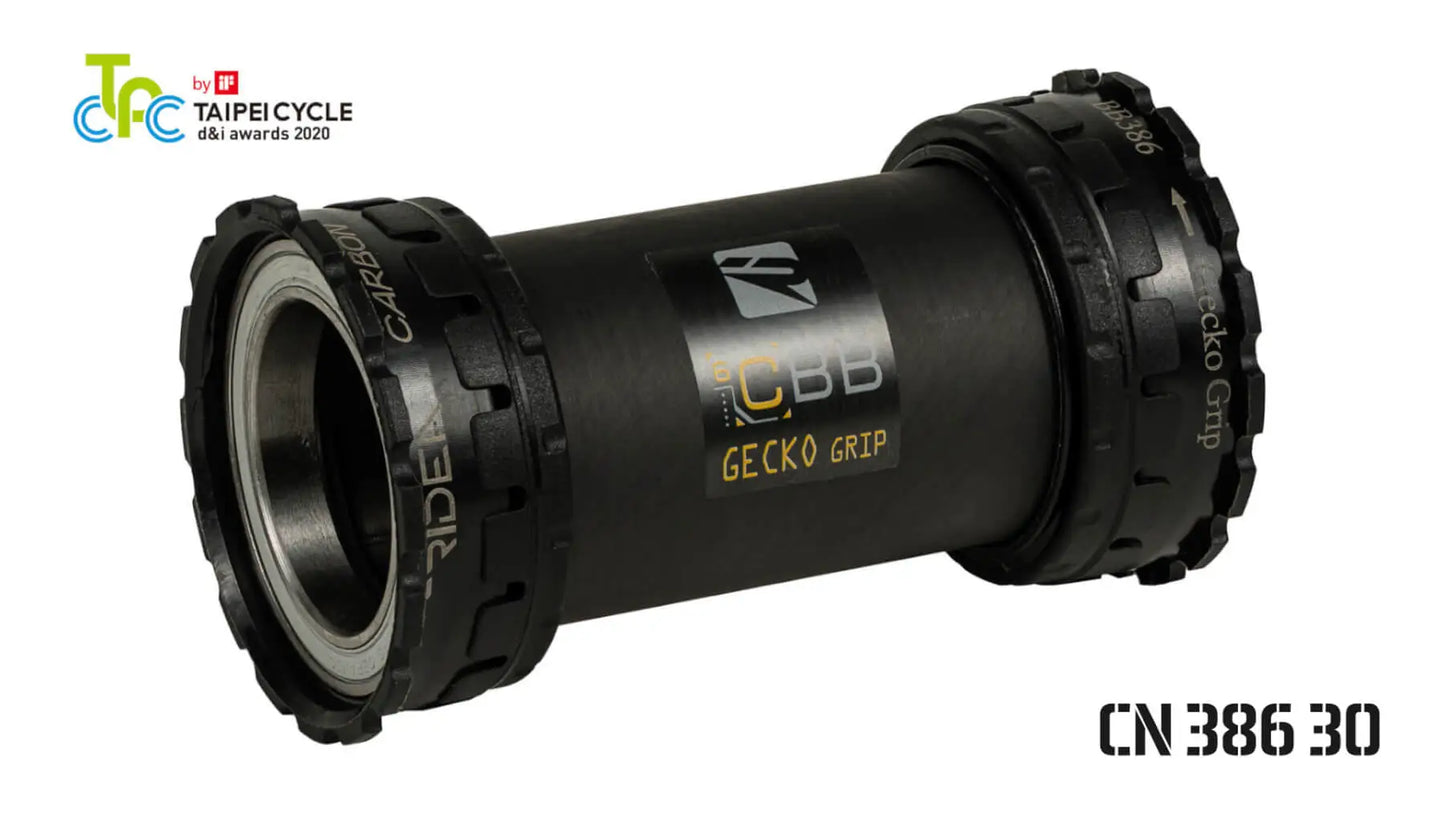

CN 386 30* BB386EVO
BB392EVO 		86.5 mm
91.5 mm 		46 mm 24/25/29/30 mm 73 g

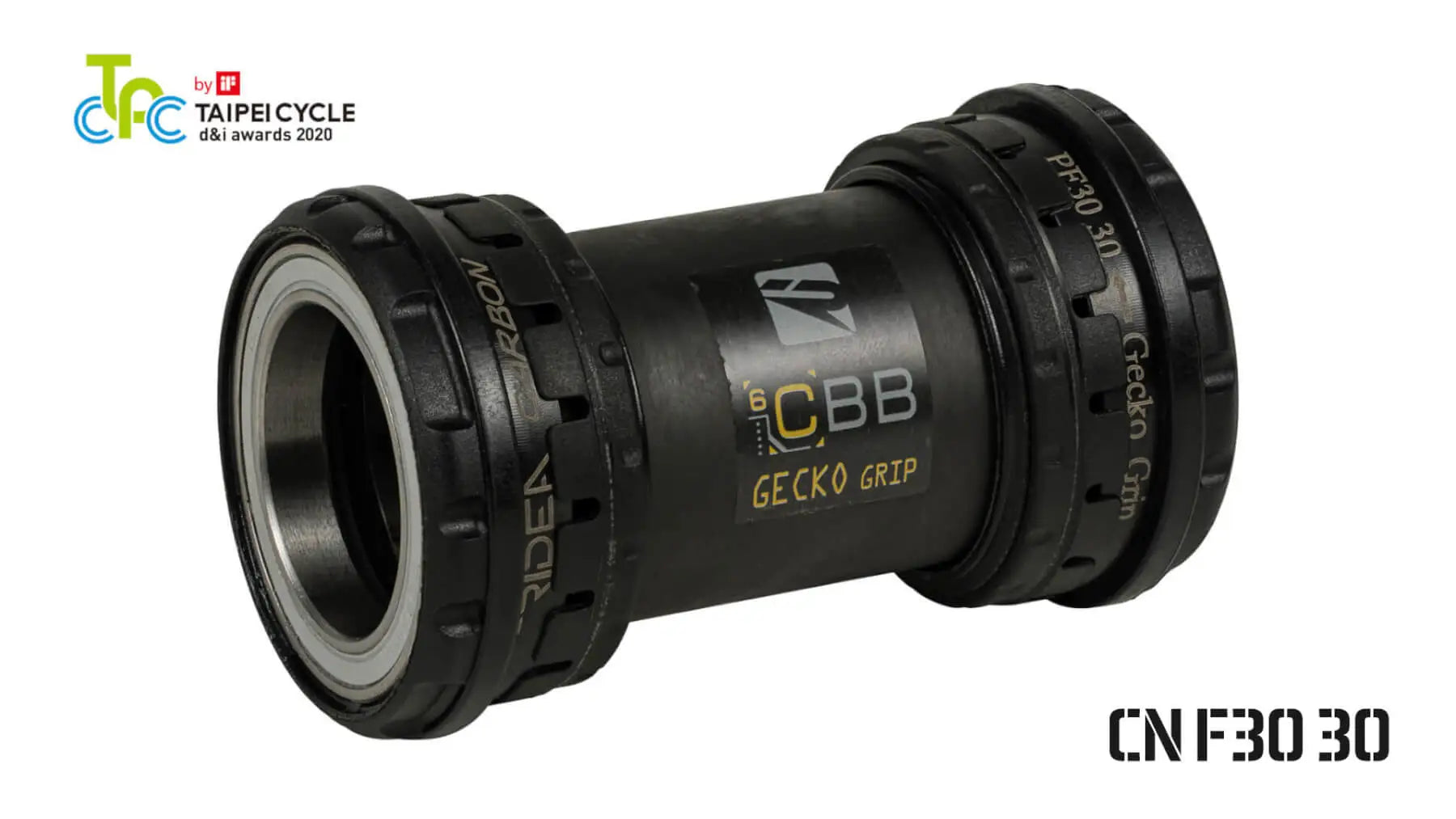

CN F30 30 PF30 68 mm
73 mm 		46 mm 24/25/29/30 mm 88 g

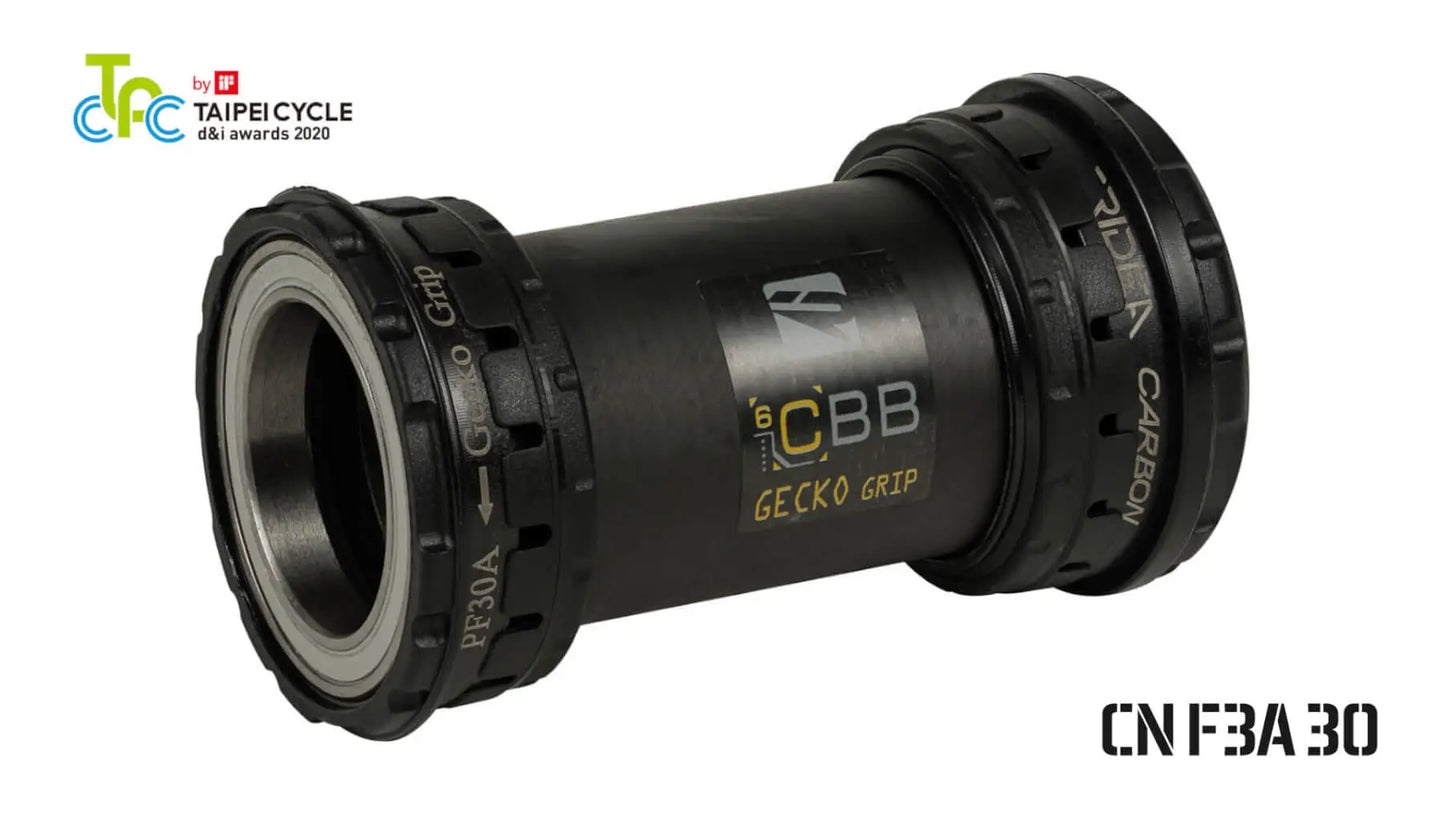

CN F3A 30 PF30A 73 mm 46 mm 24/25/29/30 mm 84 g

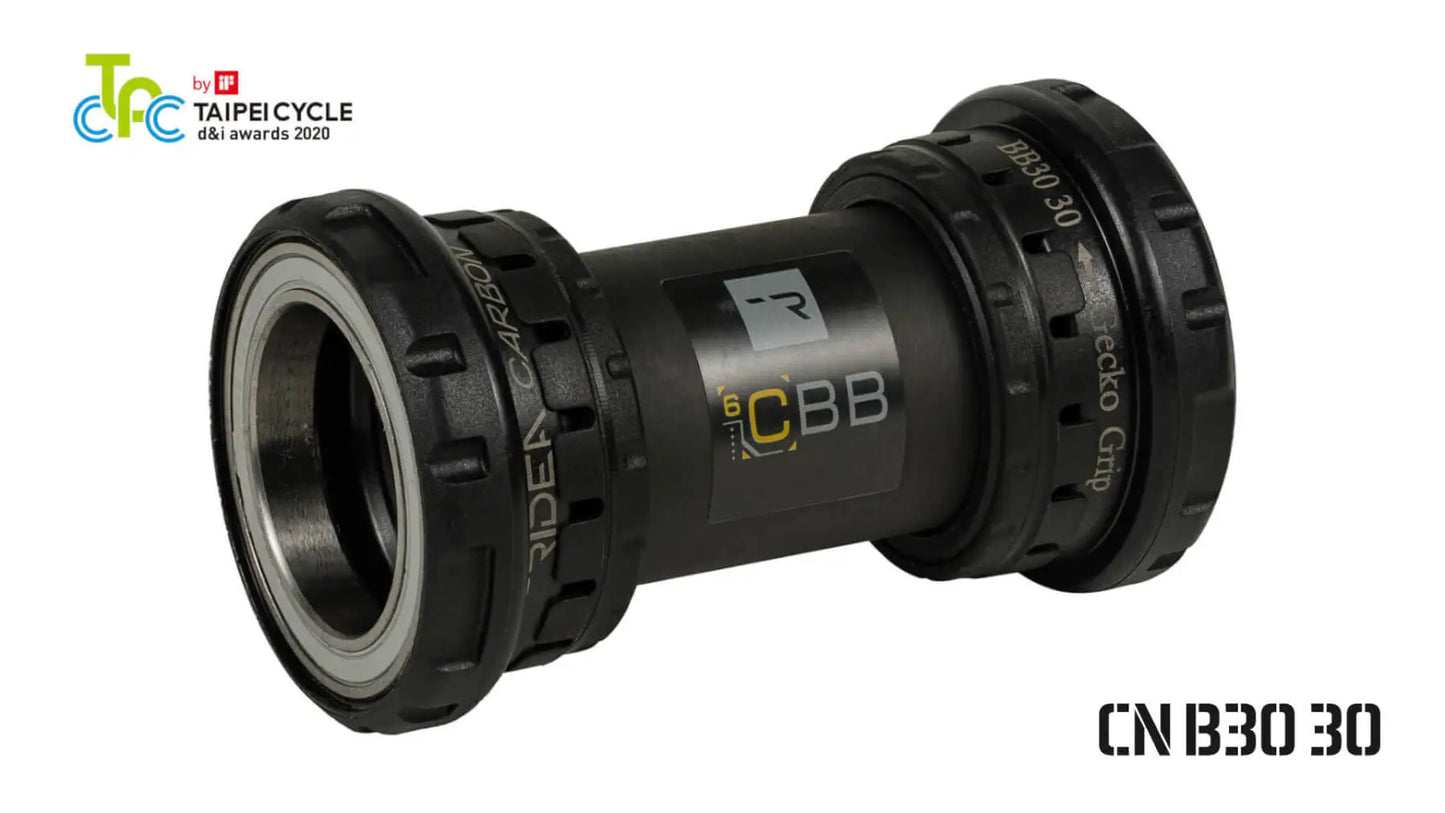

CN B30 30 BB30 68 mm
73 mm 		42 mm 24/25/29/30 mm 79 g

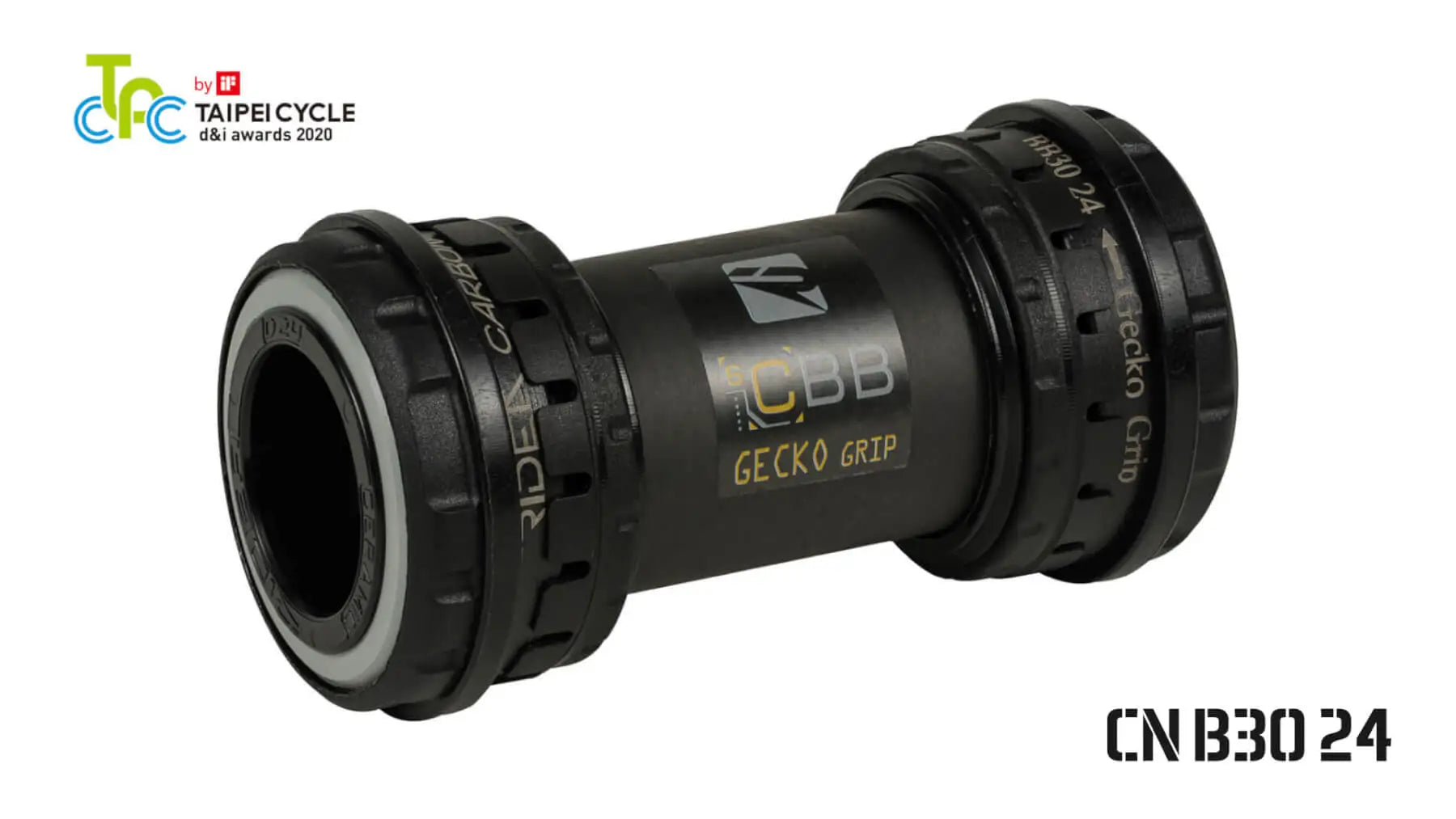

CN B30 24 BB30 68 mm
73 mm 		42 mm 24 mm 80 g

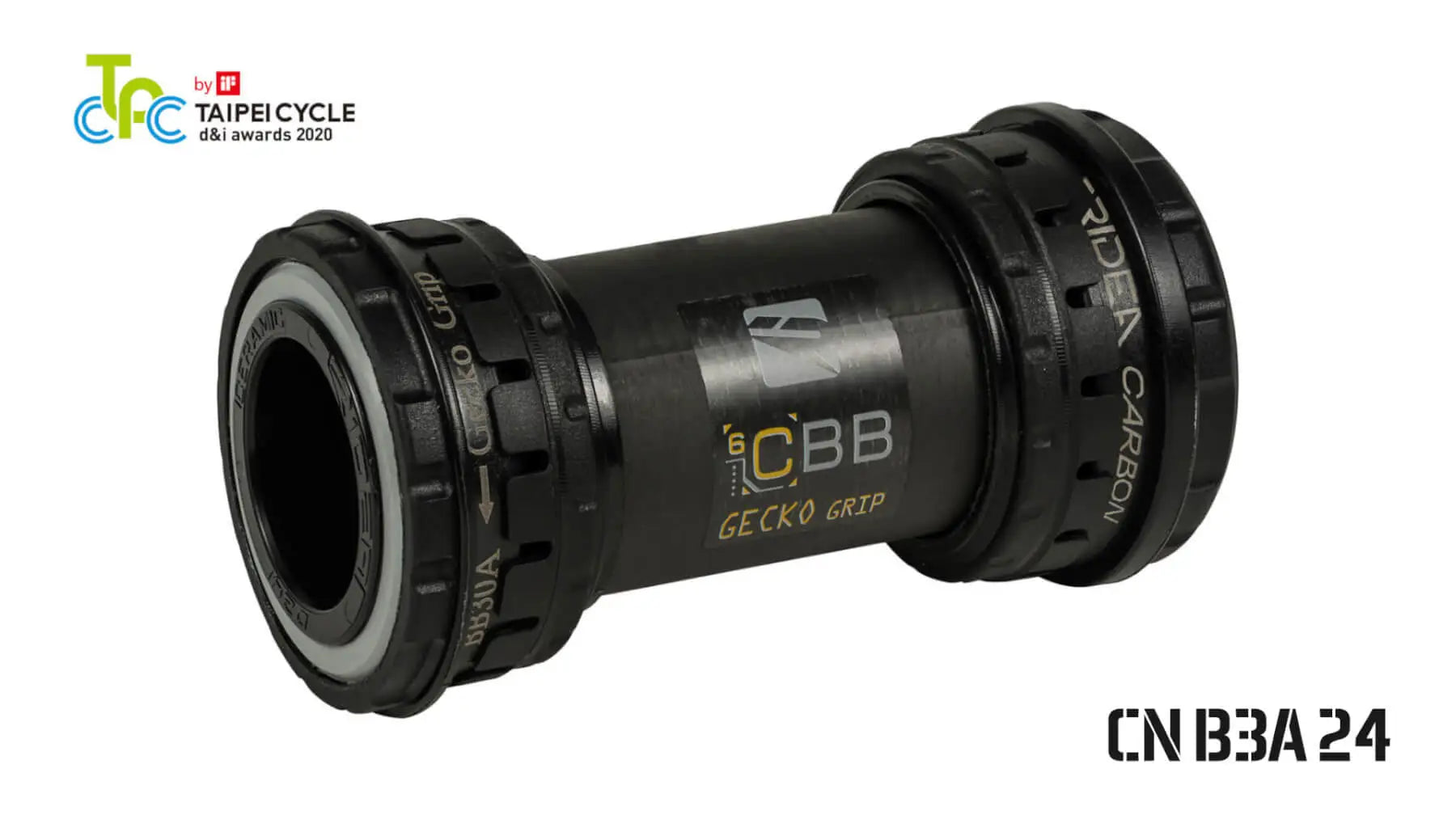

CN B3A 24 BB30A 73 mm 42 mm 24 mm 76 g

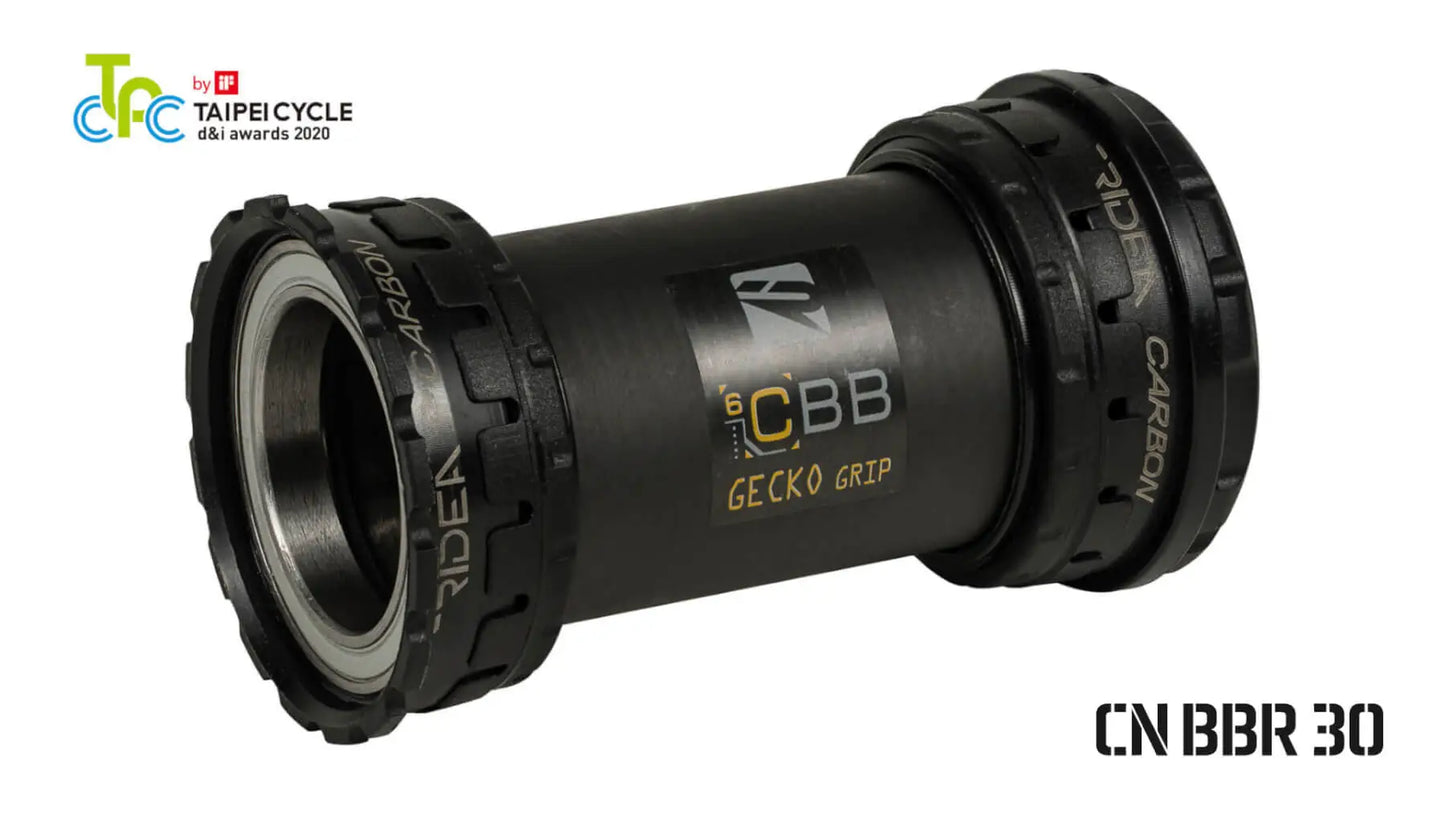

CN BBR 30 BBright 79 mm 46 mm 24/25/29/30 mm 80 g

*CN 386 30 is also compatible with PF30 and OSBB frames by cutting the length of the center sleeve.
